Pro Audio in a Tiny Package: Beachtek DXA-RED

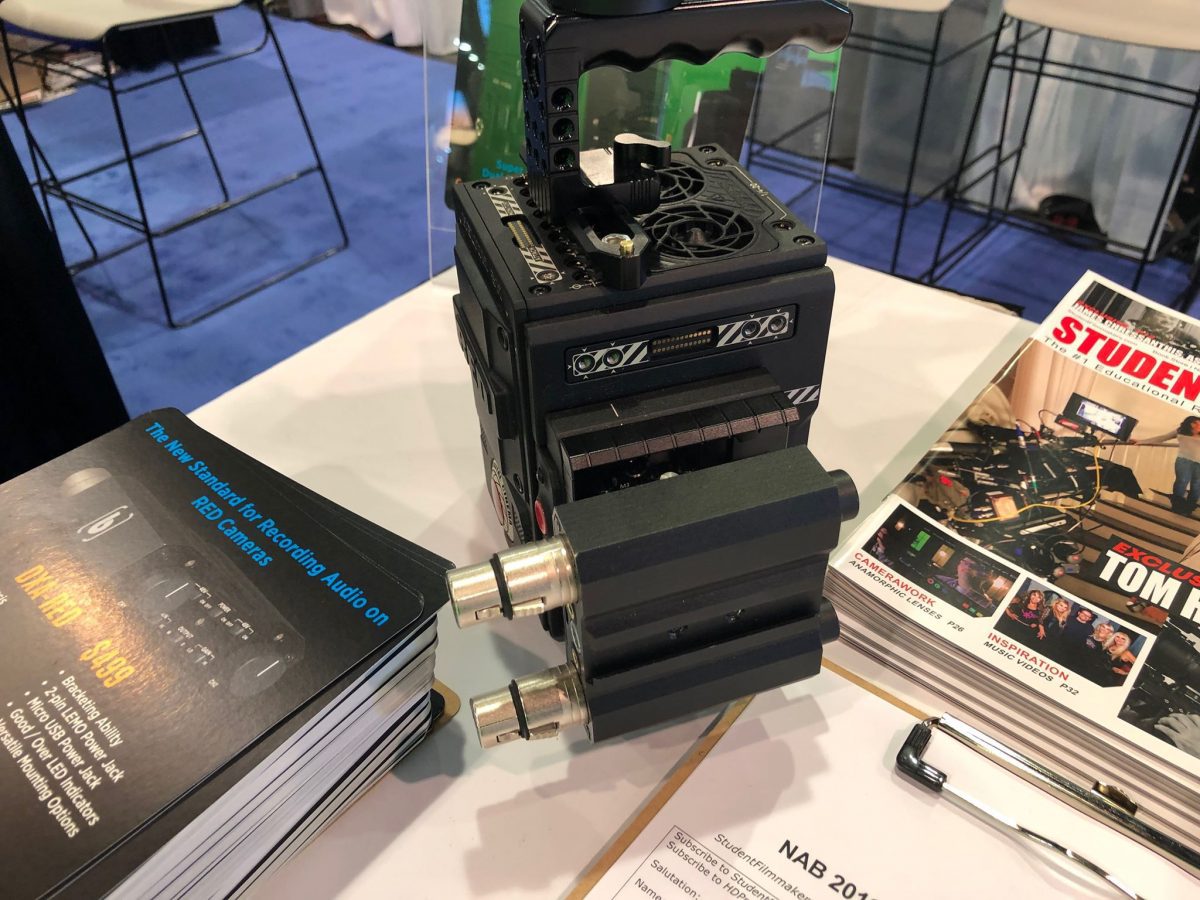

Pictured: The Beachtek DXA-RED at the StudentFilmmakers Magazine exhibit booth @ 2019 NAB Show, Las Vegas, Nevada

The new standard for recording audio on RED cameras

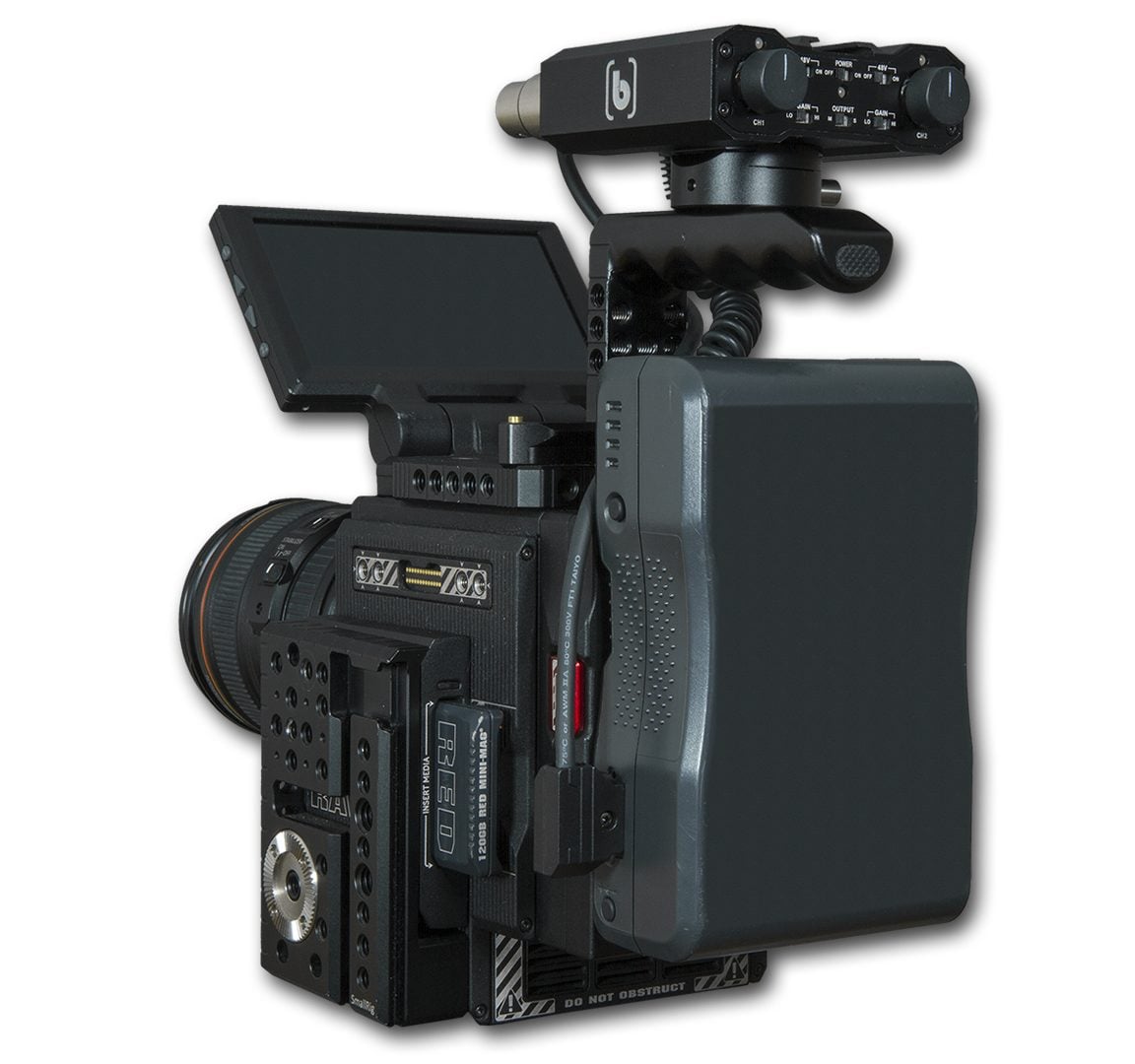

Super compact and easily mountable Dual XLR Adapter with low-noise preamplifiers for RED DSMC2 cameras. Can also be used on any other cinema or DSLR camera with a 3.5mm mic jack. Simple, no fuss layout and features gives you everything no need to easily record high quality audio to your camera.

Download Product Manual Here >>
Features Include:
  • Phantom Power
  • Dual Gain
  • Good/Over LED Indicators
  • Versatile Mounting Options
  • Low-Noise Preamplifier
  • Mounting Shoes
  • Tiny and Light Weight
  • 2 x XLR Inputs
  • Bracketing
  • 2-pin LEMO or USB Power
  • Main and Aux 3.5mm Outputs
  • Quick Release Mount


Frequency Response
20Hz to 20kHz (+/-0.5dB)

MAIN OUT Lo Gain: 40dB, Hi Gain: 60dB
AUX OUT Lo Gain: 20dB, Hi Gain: 40dB

Dynamic Range

Lo Gain: 0.01% (+4dBu output, 1kHz)
Hi Gain: 0.09% (+4dBu output, 1kHz)

Channel Separation
LO Gain: 80dB (+4dBu output, 1kHz)
HI Gain: 68dB (+4dBu output, 1kHz)

Level Indicators
Green -40dBu to -4dBu
Red over -4dBu

Maximum Input Level
Lo Gain: -20dBu
Hi Gain: -40dBu

Output Clipping

2-Pin 0B LEMO Jack (5-18V, 120mA)
Pin 1 = (-), Pin 2 = (+)
Micro USB Jack (5V, 800mA)

83.6mm x 75mm x 28mm (3.3″ x 3.0″ x 1.1″)

Weight   257g (0.56lbs)
